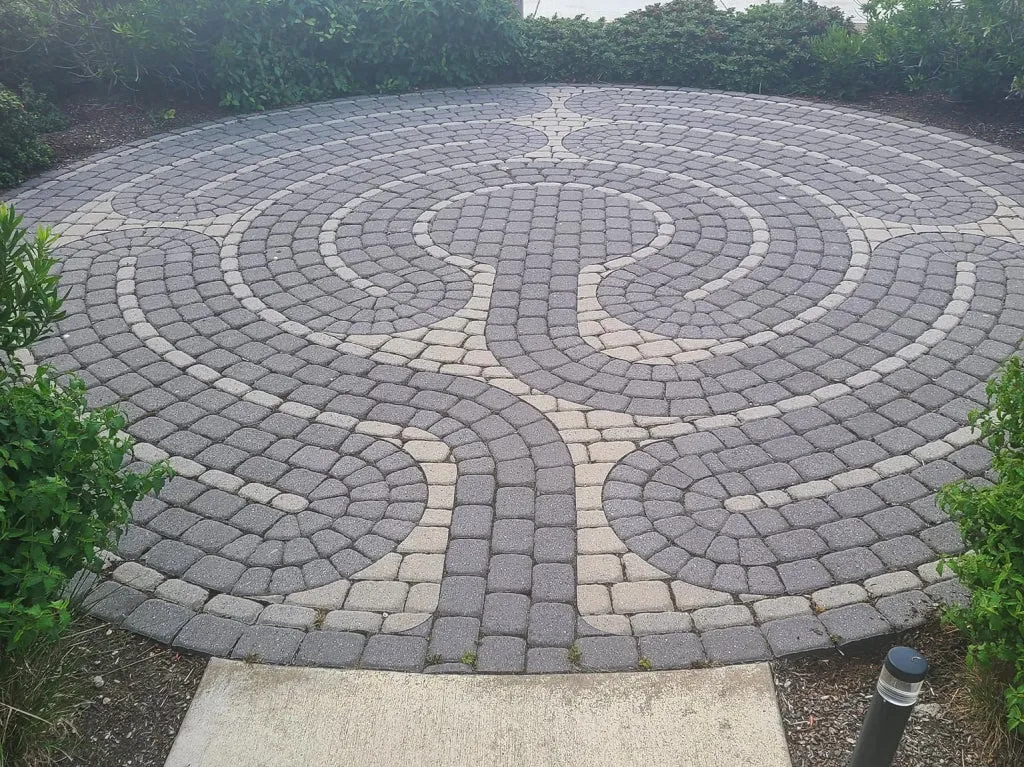

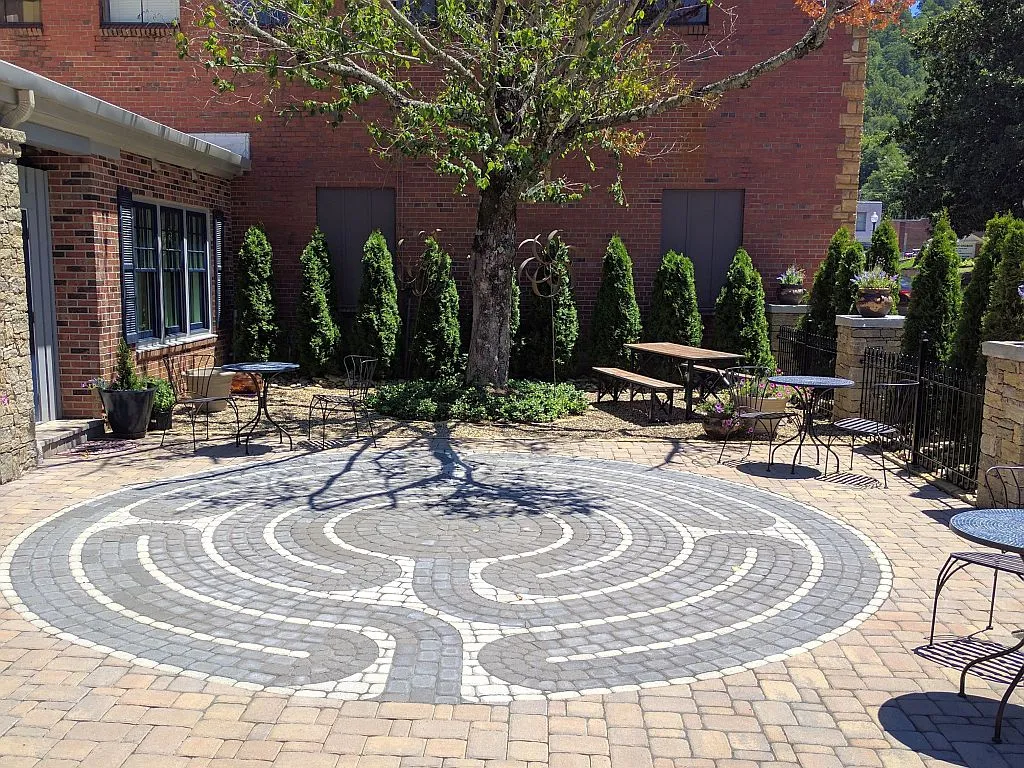

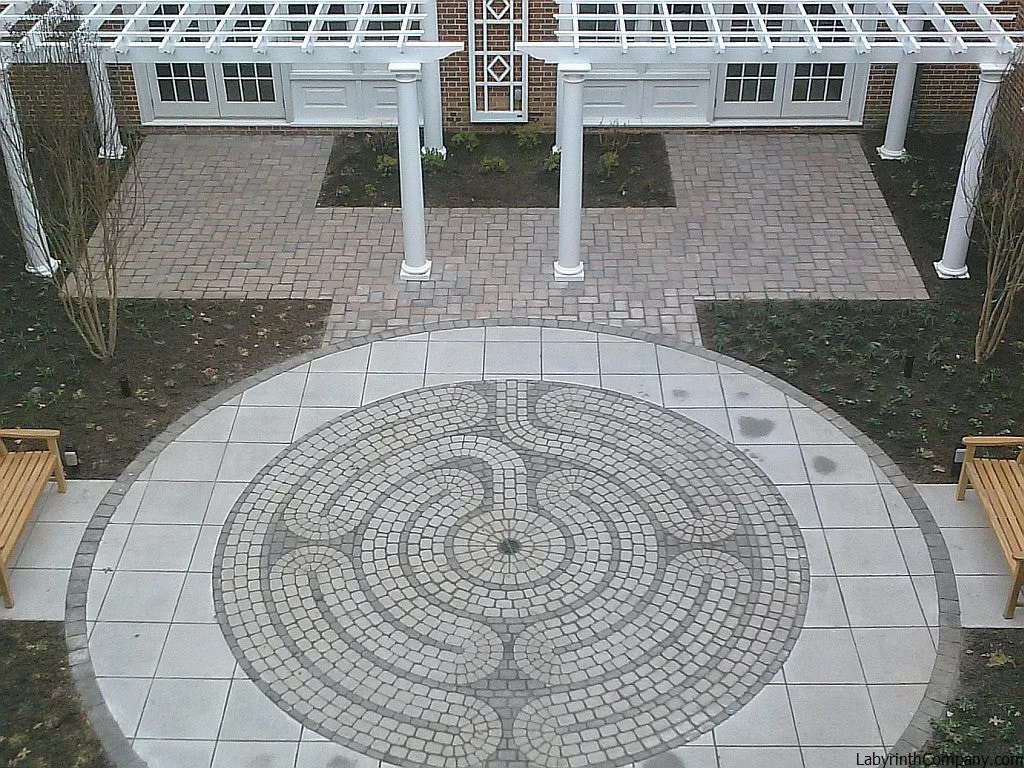

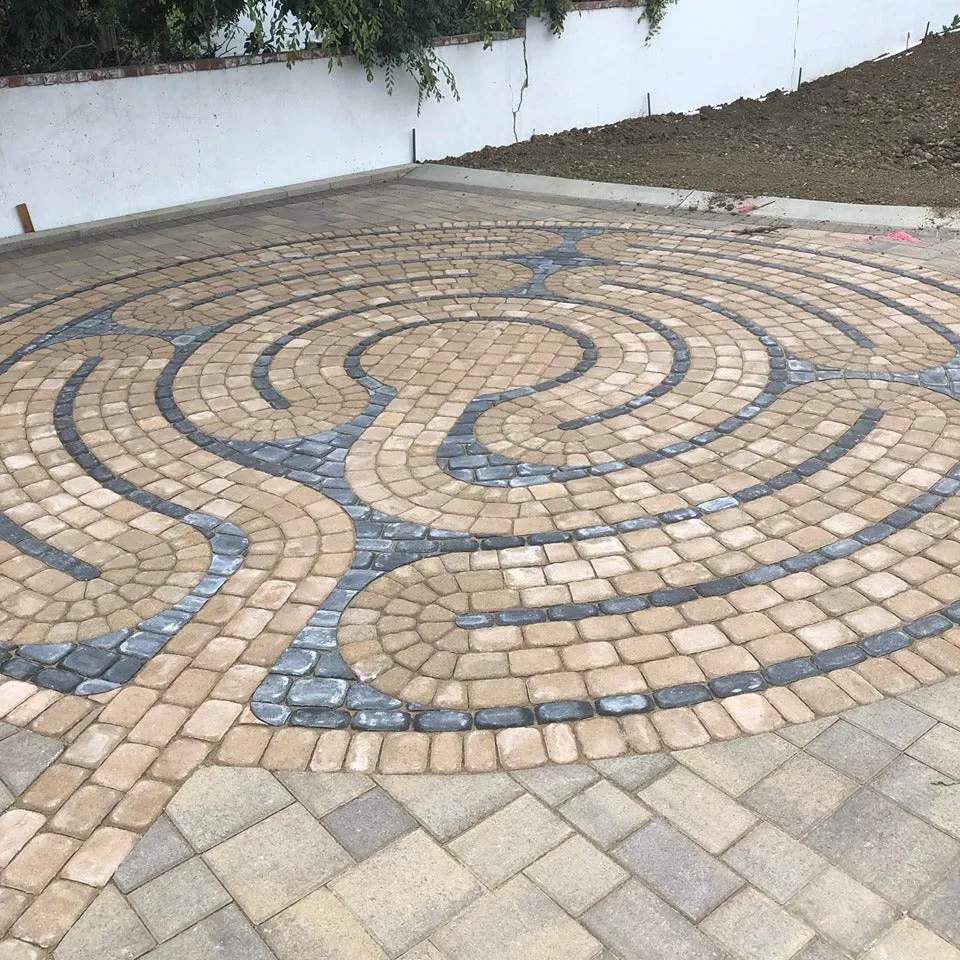

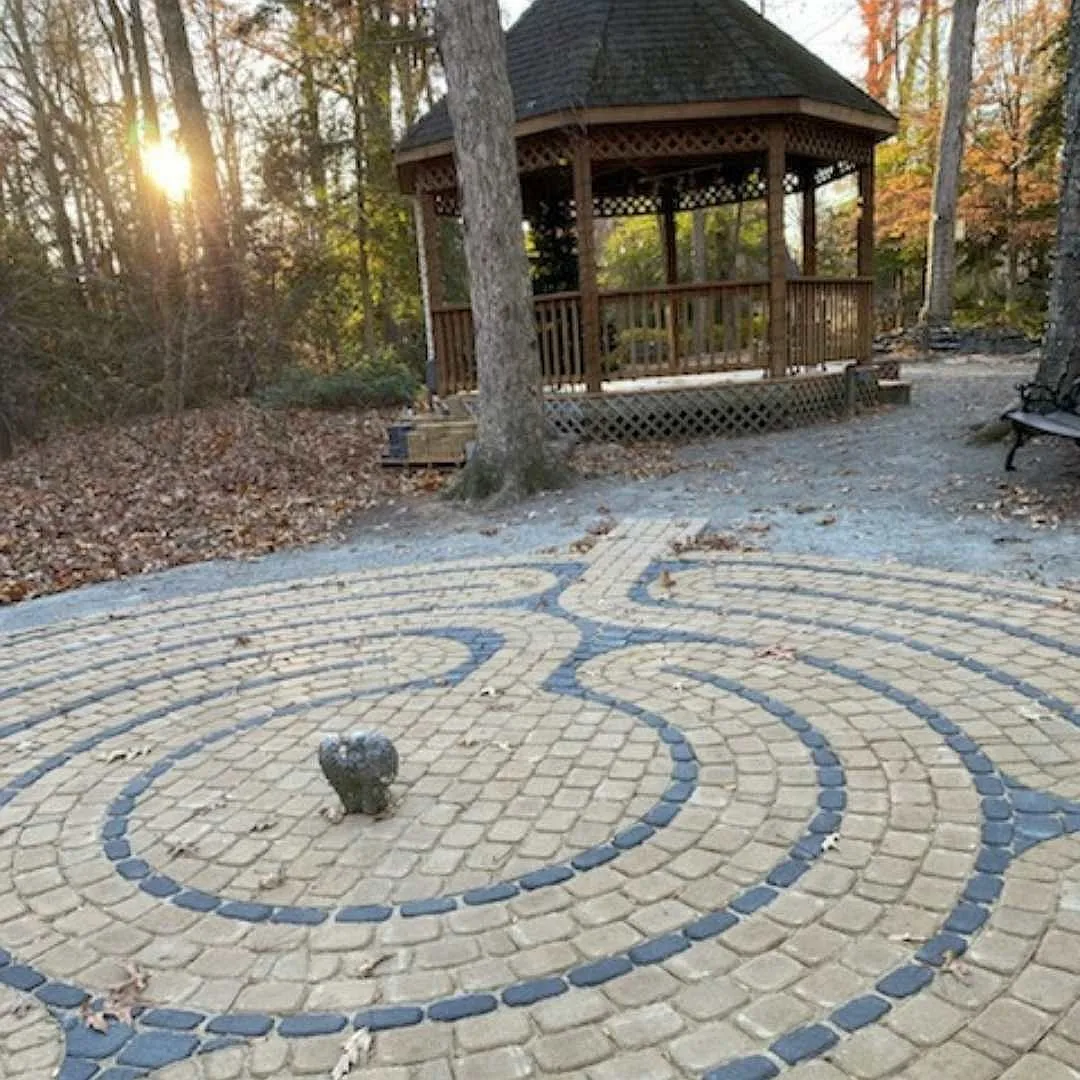

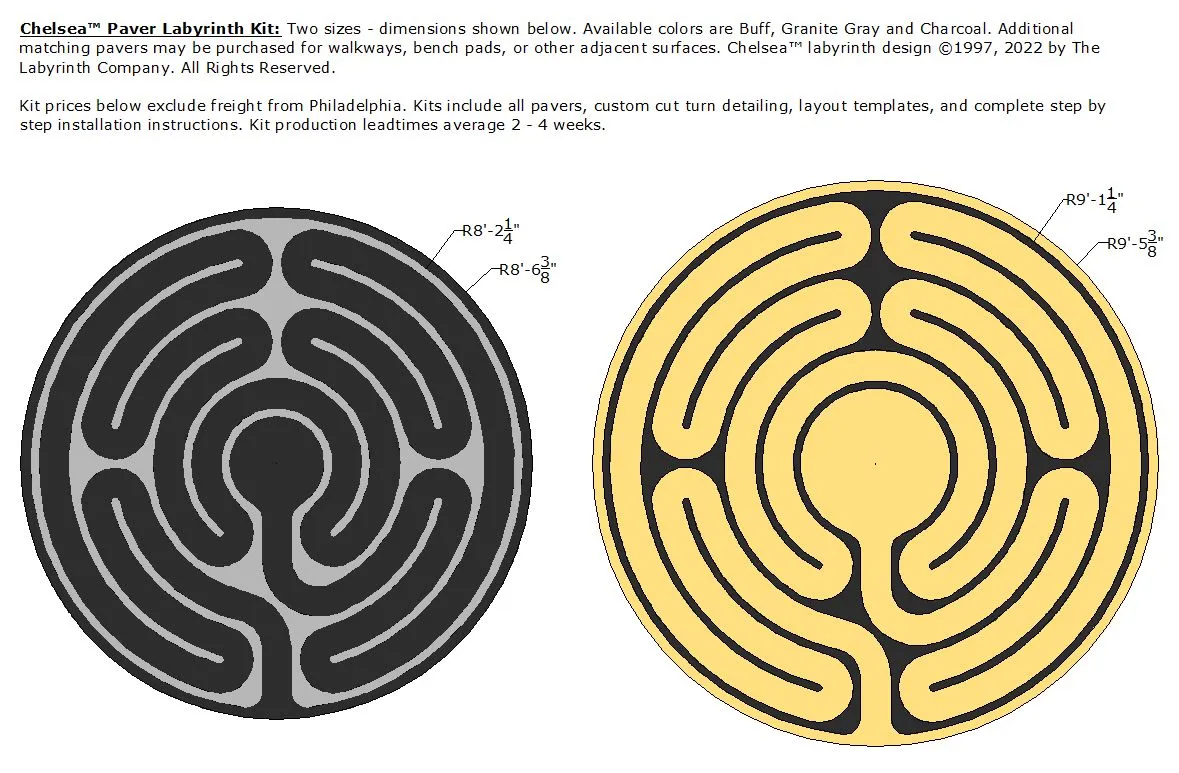

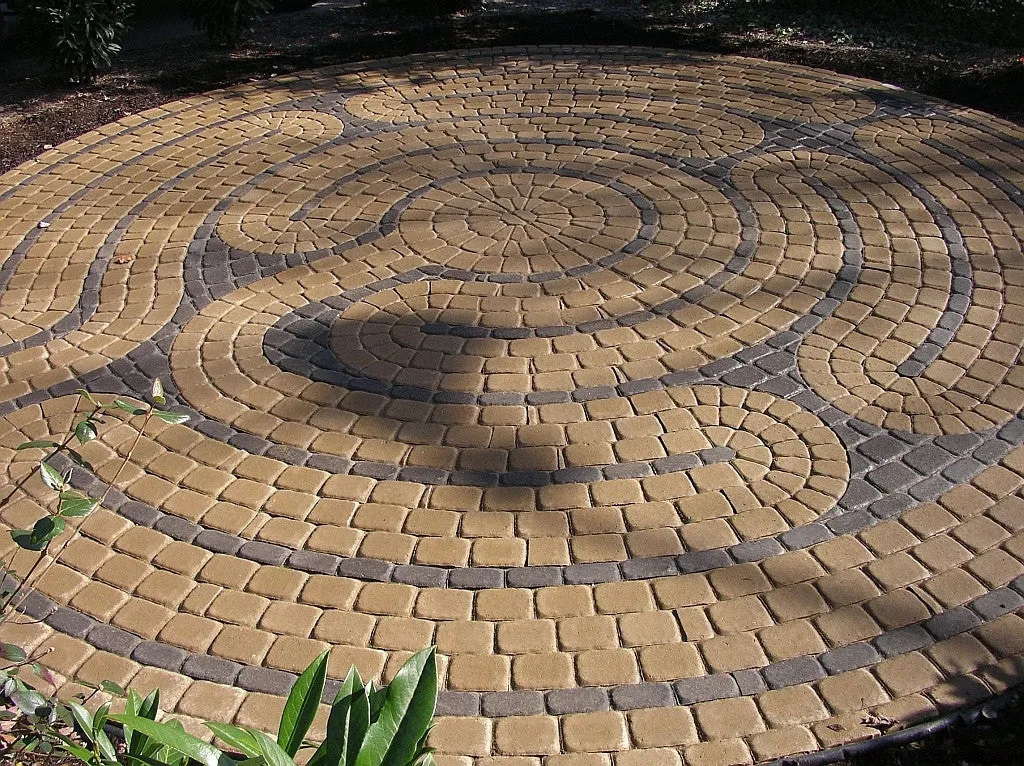

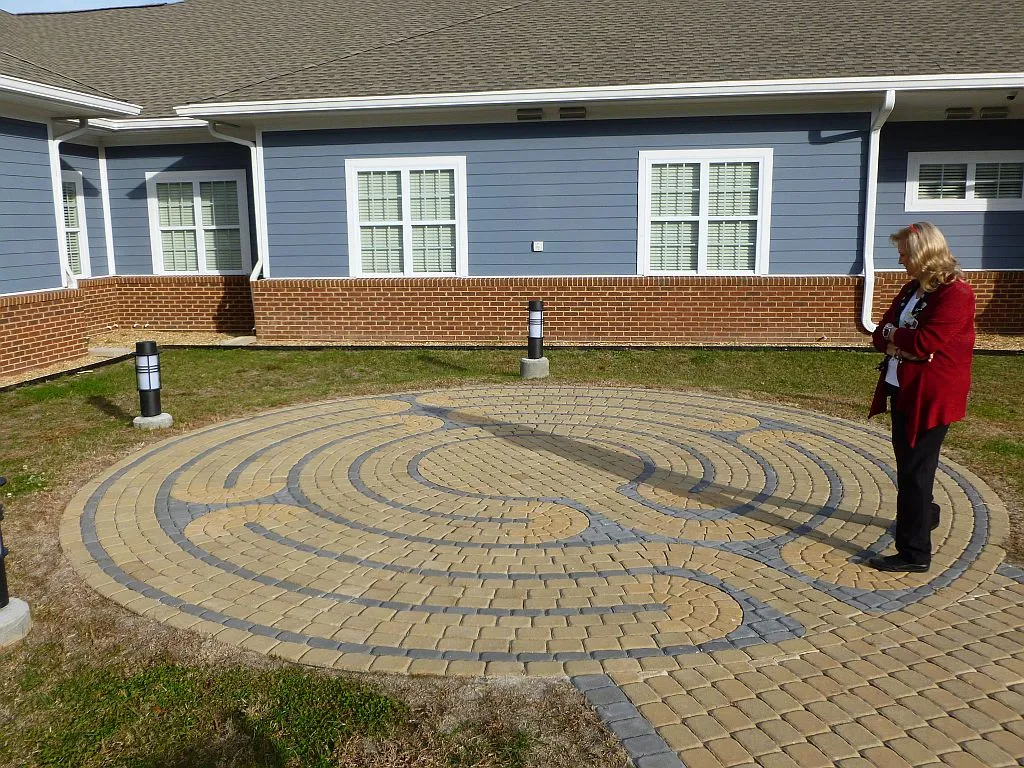

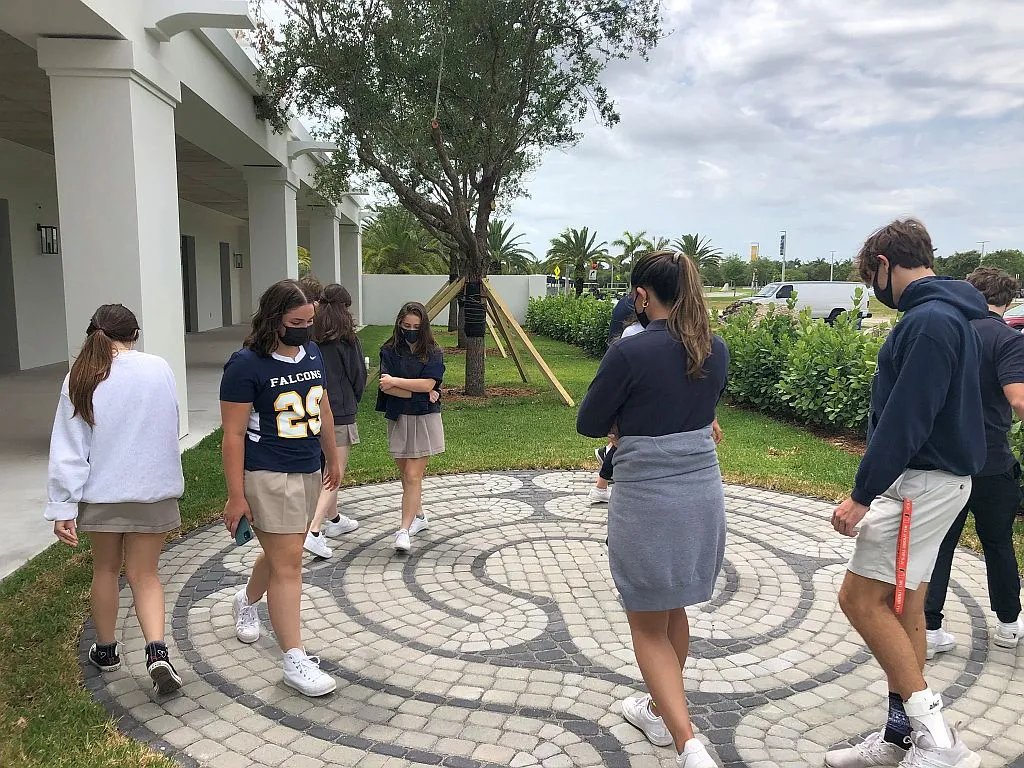

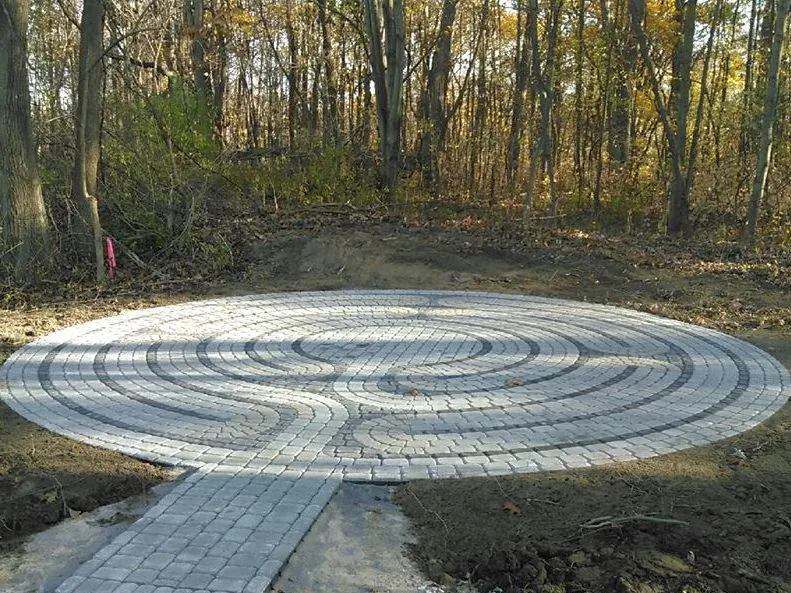

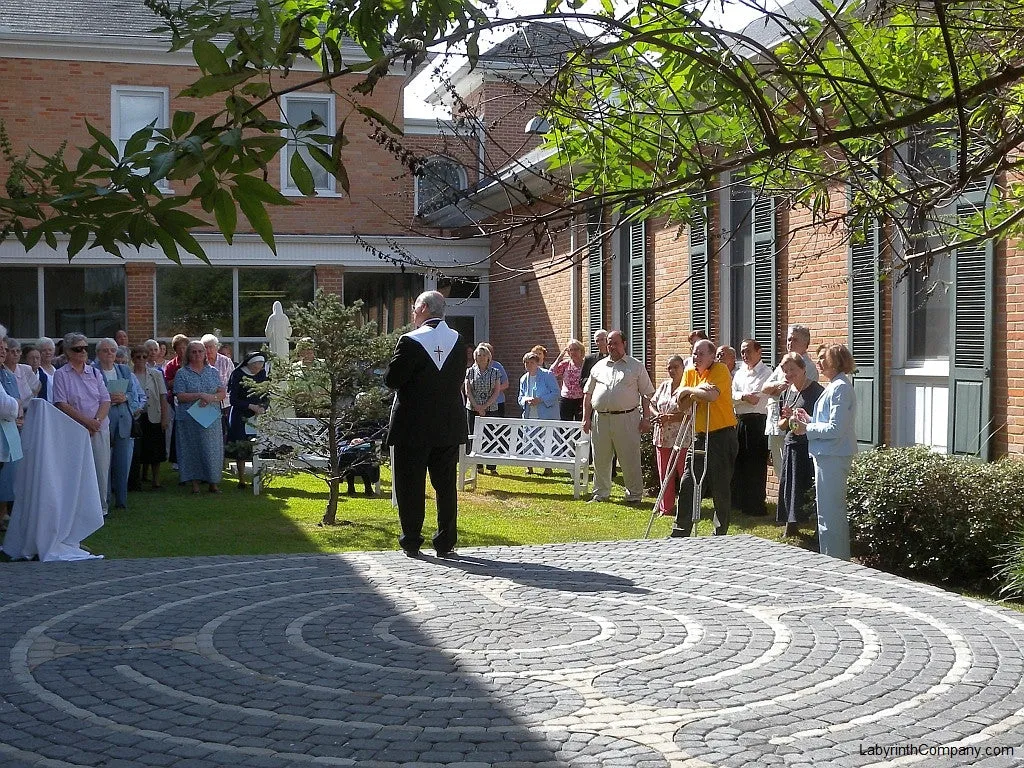

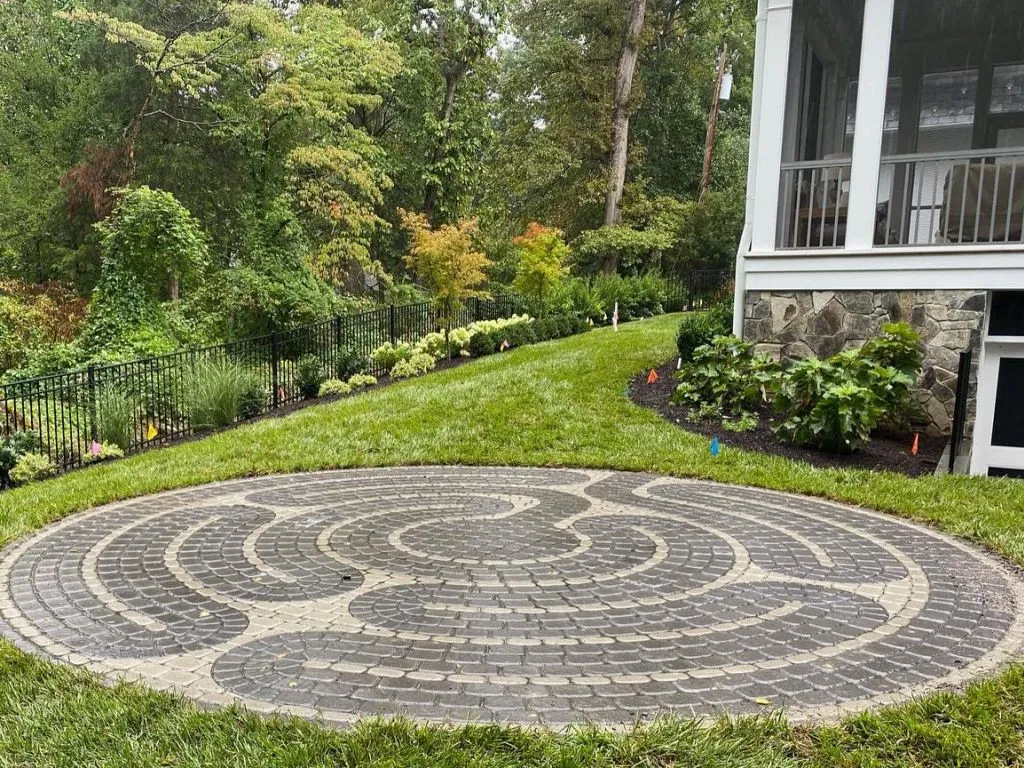

• Our 5 circuit Chelsea™ design is suitable for small groups and moderate spaces. We like it so much we adopted it as our logo! Our Chelsea paver labyrinth kit is available in two sizes (the center opening size accounts for the difference) and shares the same delicate 4.5 to 1 path to line ratio as our Chartres Replica. Create plaza diameters of 18'-10.75" and 17'-0.75". Packaged into an easy to install kit in 4 color combinations, your paver brick labyrinth plaza will be fully ADA handicap rated.

• Plaza Diameter/Area	18'-10.75" / 280 sq.ft.	17'-0.75" / 229 sq.ft.
  Labyrinth Diameter	18'-2.5"	16'-4.5"
  Number of Circuits	5	5
  Circuit Width	15-1/8"	15-1/8"
  Path Width	12-3/8"	12-3/8"
  Line Width	2-3/4"	2-3/4"
  Center Diameter	5'-6"	3'-8"
  Path Length	179 feet	161 feet
  Round Trip Length	357 feet = .07 mile	321 feet = .06 mile
  Capacity	3 - 5 Walkers	2 - 4 Walkers
  Material	Concrete Paver Bricks in 2 Colors	Concrete Paver Bricks in 2 Colors
  Thickness	2-3/8" = 6 cm	2-3/8" = 6 cm
  Composition	High Strength 8000 PSI Concrete	High Strength 8000 PSI Concrete
  Packaging & Weight	6 Pallets - 10640 pounds	5 Pallets - 7530 pounds

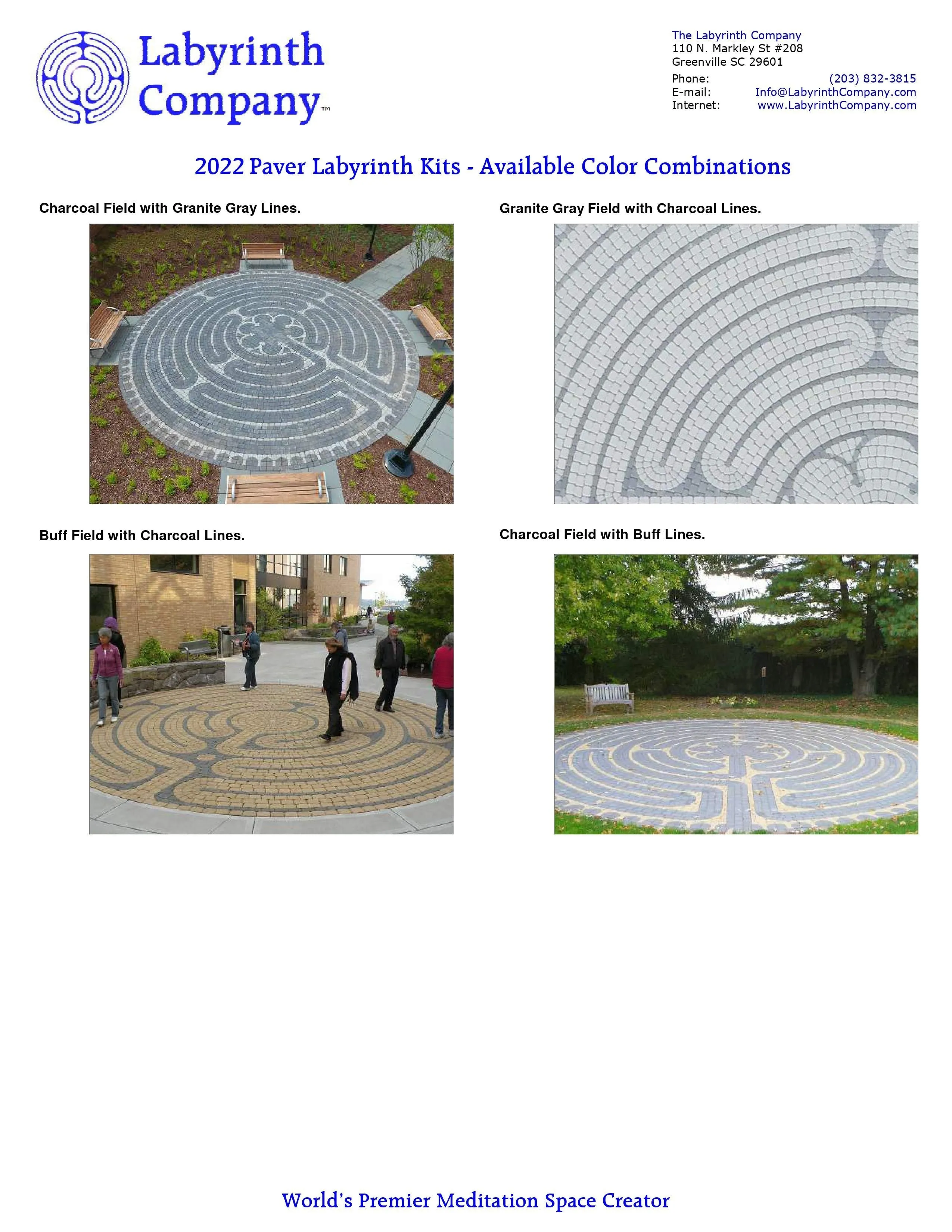

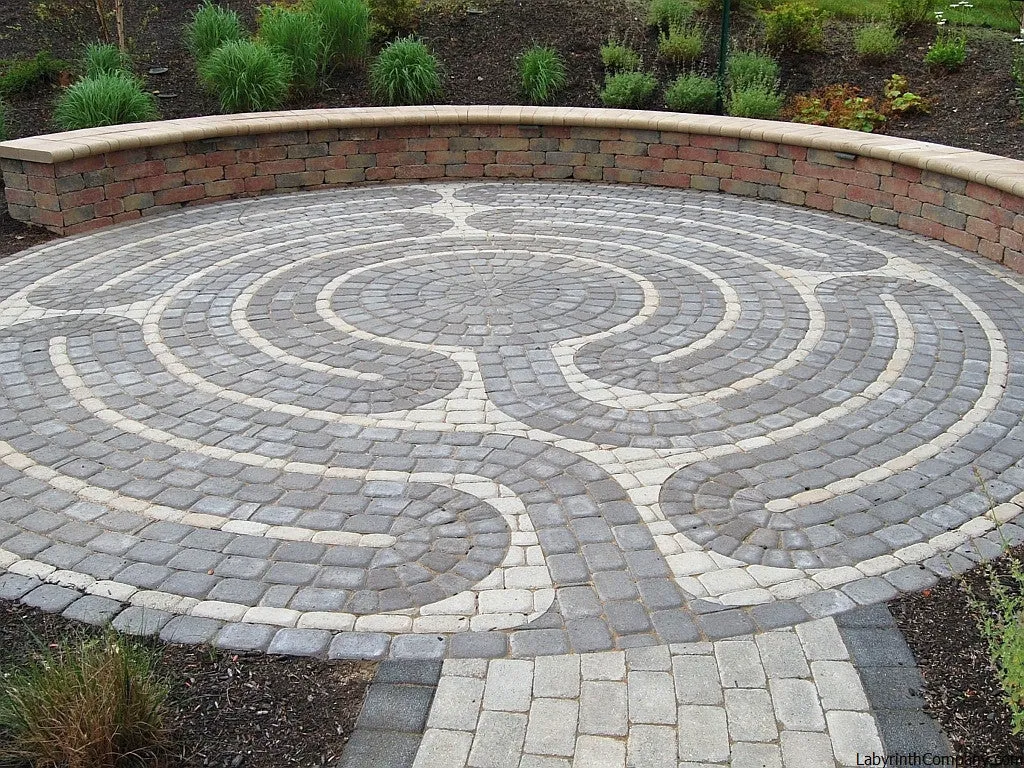

• Available colors are Charcoal, Buff and Granite Gray. Charcoal is required as either the line or field/path color. These integral color paving stones have color throughout each block, not just on the surface.  Additional matching color pavers may be ordered to complete your hardscape installation with pathways, bench pads or an apron around your labyrinth. Call or email us today to receive a set of sample pavers.

• Delivery is by full truckload to your facility or job site, with freight costs determined by destination. Contact us today for a freight quote to your location.

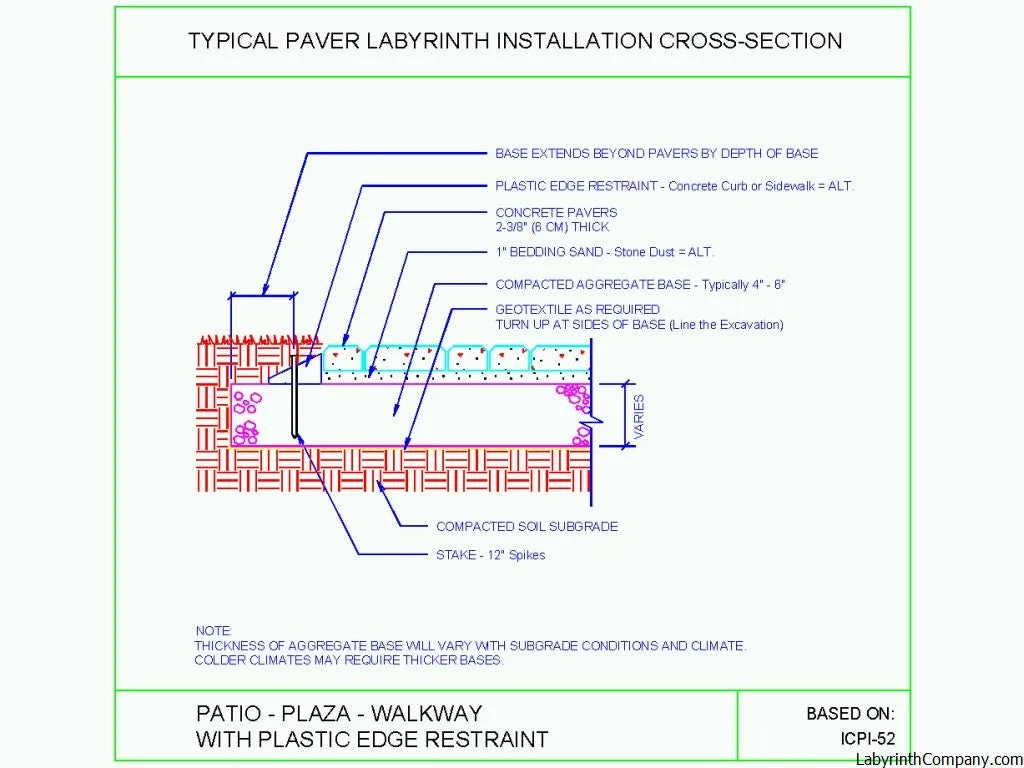

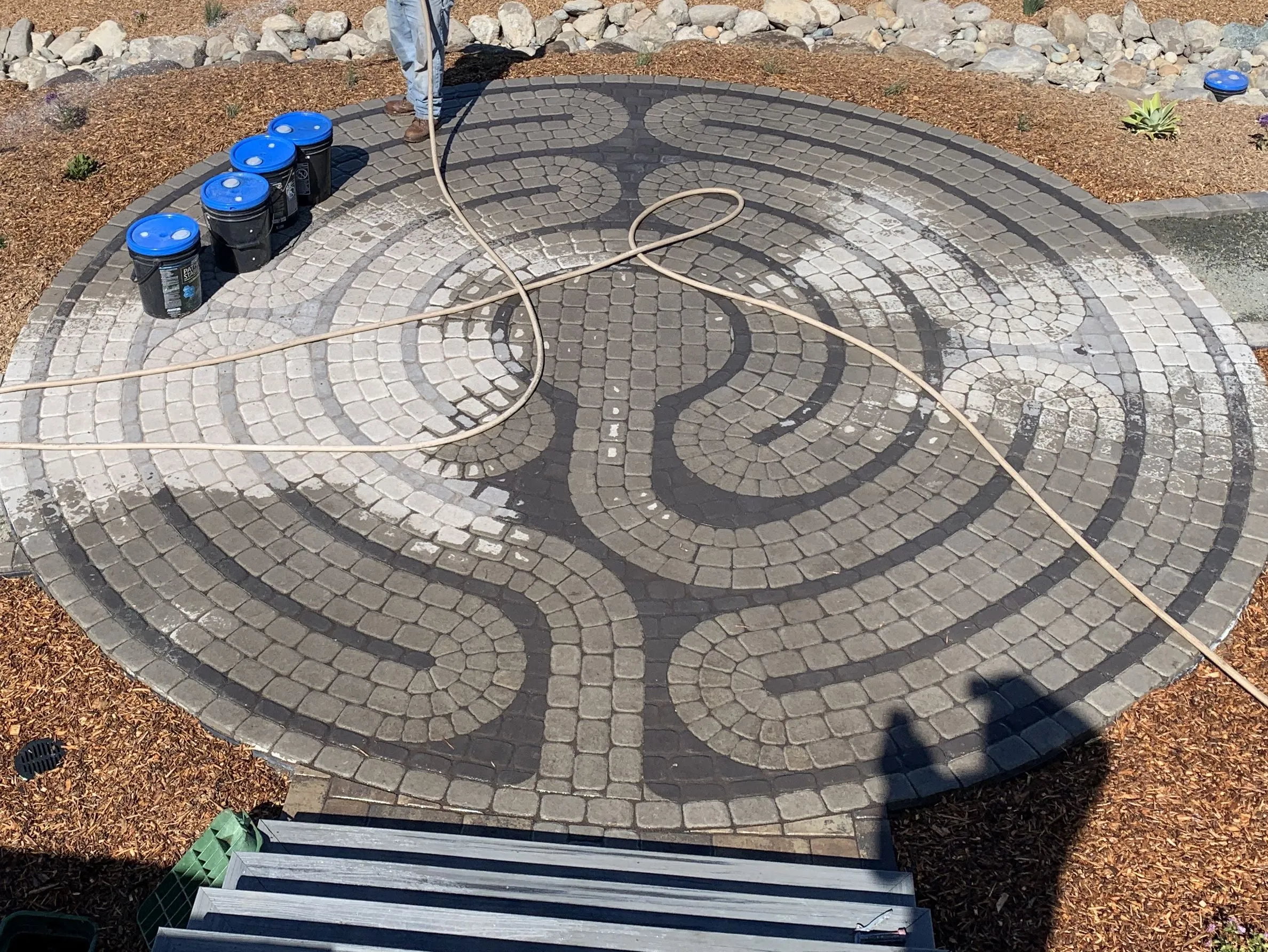

  Build Productivity: similar to a typical 18' round paver patio plus 2 crew hours to insert the pre-cut details. Including base preparation this is a 2 - 2.5 day project for an experienced paver installation crew (4 workers plus supervisor). We recommend the use of polymeric joint sand for best results.
  What's Included? all of the pavers for the design, including pre-cut and specially molded turns, packed in logical layers on pallets, one-time use layout templates, detailed step-by-step instructions, and telephone and email support during your build.
  Video Installation Example We installed a 23' round kit on the DIY Network show Rock Solid.
  Copyright: Chelsea™ labyrinth design ©1997, 2022 by The Labyrinth Company. All Rights Reserved.
